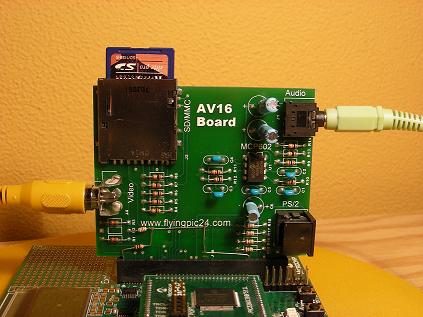

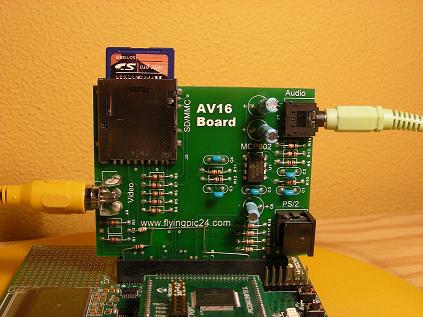

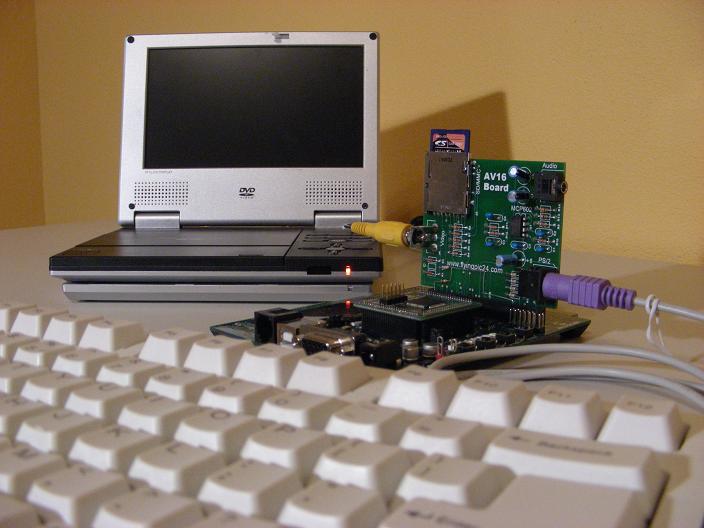

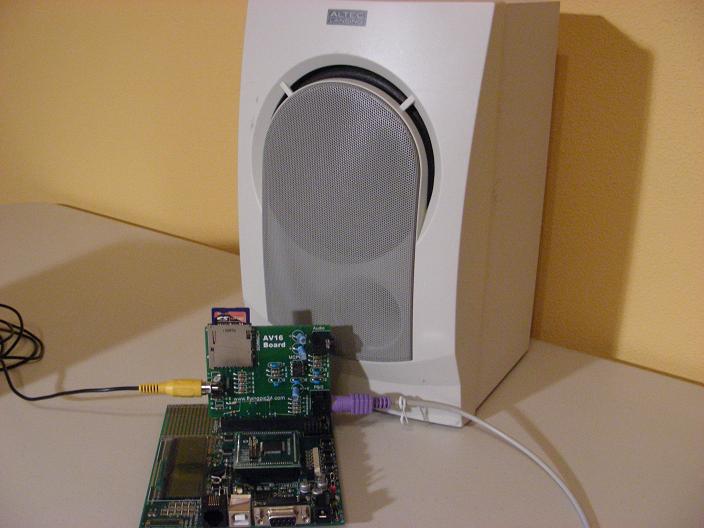

The AV16/32 Board is a PICTail(tm) Plus board designed to expand Microchip Technology’s Explorer 16 Development Board and compatible with the PIC32 I/O Expansion Board. It provides the combined functionality of several standard PICTail Plus boards (SD, Audio) and additional interface options for a fraction of the cost.

After assembling this board you will be able to test all the code and follow all the experiments illustrated in the  “Flying the PIC24” and “Exploring the PIC32” books.

The board provides the following connections:

  • 1/8” Stereo Audio Output Jack (J1)
    The stereo output circuit uses active 2nd order filter circuits to produce  quality audio from the PIC24 PWM outputs.  The signal can be connected to high impedance headphones, PC speakers, or a PC sound card input.
  • SD Card Interface (J2)
    The SD card socket connects to the SPI2 channels on the PIC24/PIC32.
  • PS/2 Keyboard Input Port (J3)
    The PS/2 keyboard input can be connected to the Change Notification (CN) input pin, the Input Capture (IC) input pin or a generic digital I/O.
  • Composite Video Output (J4)
    The video output uses an Output Compare channel and a SPI channel to produce monochrome NTSC (or PAL) composite video.
  • VGA (monochrome) Output (J5)
    VGA connector will allow you to obtain a (monochrome) high resolution output directly on a standard computer screen. ( PIC32 only, the VGA connector is not included in the kit offer below)

All components are through hole for easy assembly. Only a basic fine tip soldering iron is required.

As a service to my readers I can provide small quantities of the following:

    • AV16/32 Board PCB ,  $25
      A professionally manufactured  printed circuit boards (PCB)
      (First class mail – shipping included).
      Buy Now Button with Credit Cards



No Paypal account required!

Below you will find a bill of materials listing all required components (including Digikey codes), simple instructions and components datasheets to assist you mounting your AV16/32 board:
